How Does The Spinning Mold Match The Outside Profile of The Product
Date: Apr,02 2025 View:

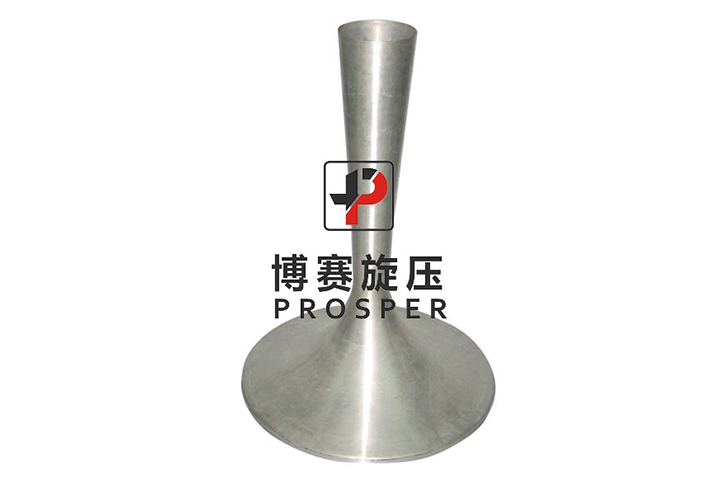

How Does The Spinning Mold Match The Outside Profile of The Product During the spinning production, there are many products that need the outer outline of the product, but the design of the spinning mold in the actual production is based on the internal outline of the product, and the mold designed and processed according to the internal outline of the product can not match the external outline of the product. The matching of the outer profile of the spinning die and the outer profile of the product is a key link in the spinning process. The following are the matching points and methods: (1) Theoretical calculation: According to the geometric shape and size requirements of the product, it is necessary to consider the amount of deformation of the material in the spinning process, and combined with the spinning process parameters (such as the forming Angle of the roller, the spinning gap, etc.), the shape and size of the outer profile of the mold are determined by theoretical calculation. (2) Simulation: Using finite element analysis and other simulation technology to simulate the spinning process, optimize the mold outer profile design, so that it can better match the product profile. (3) Testing adjustment: Through the actual spinning testing, observe the match between the product and the mold, adjust and machining the mold. In actual production, it is usually necessary to use the above methods comprehensively to ensure that the outer profile of the spinning mold is accurately matched with the outer profile of the product.
