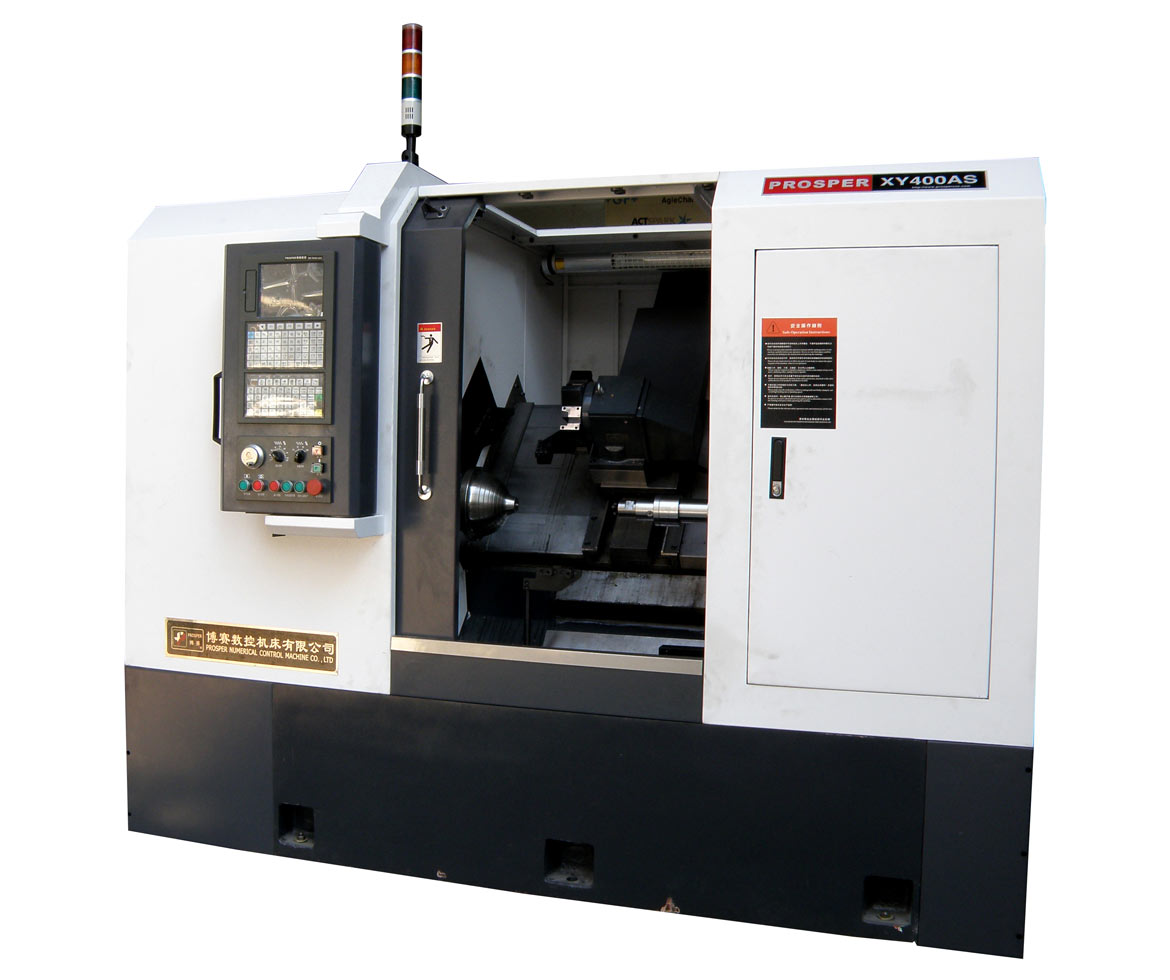

PS-CNCXY450

Model NO.

Applications:Lightings、metal art crafts、hardwares Best spinning solution for small to medium diameter/thickness product Excellent cost effective/economical practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical

Technical Data:

Parameter Unit PS-CNCXY450
Workpiece Diameter mm 450
Main spindel power Km 7.5KW
Z axis travel mm 450
X axis travel mm 400
Main spindel speed rpm 3000
Tailstock force Kn 15
Tailstock travel mm 300
Tools positions   6
AI/CU Appx.thickness mm 0.5-3.0
Steel Appx.thickness mm 0.5-2.0
S/S Appx.thickness mm 0.5-1.8



Applications:Lightings、metal art crafts、hardwares
Best spinning solution for small to medium diameter/thickness product

Excellent cost effective/economical practical

High Efficiency/High stability

Match With automatic material loading system

 About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

 Prosper Core Technology


Technical Data:

项 目 名 称 Parameter 计 量(单位) PS-CNCXY250 PS-CNCXY360 PS-CNCXY450
毛坯直径 Workpiece Diameter mm 300 360 450
主轴电机功率 Main spindel power Km 3.7KW 7.5KW 7.5KW
旋轮纵向行程 Z axis travel mm 300 360 450
旋轮横向行程 X axis travel mm 380 400 400
主轴最高转速 Main spindel speed rpm 4000 3000 3000
最大尾顶力 Tailstock force Kn 10 15 15
尾顶行程 Tailstock travel mm 300 300 300
最旋轮刀具库工位 Tools positions   2+2 2+2 6
铝、铜板毛坯参考厚度 AI/CU Appx.thickness mm 0.5-2 0.5-3.0 0.5-3.0
低碳钢板毛坯参考厚度 Steel Appx.thickness mm 0.5-1.5 0.5-2.0 0.5-2.0
不锈钢板毛坯参考厚度 S/S Appx.thickness mm 0.5-0.8 0.5-1.8 0.5-1.8

Specifications:

High strength Ht300 flat cast machine body
Prosper CNC spinning CNC system
Spinning tools turret/rollers
Heave duty guide and ball screw
Higt torque/high speed spindle
PROSPER SPINCAD Programming Software
BE unit(Optional)
Lubrication Spray unit(Optional)
Manipulator(Optional)
SIEMENS system with PROSPER secondly
Surface treatment tools(Optional)
Finger tools(Optional)
